Tadano Data Transmitter DCU2 and VCU (GR-130N-1 - GR-700N-1) :

Tadano Crane models
GR-130N-1
GR-160N-3
GR-250N-3
GR-700N-1

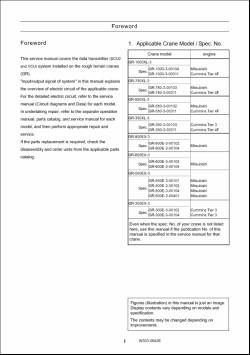

This service manual covers the data transmitter (DCU2 and VCU) system installed on the rough terrain cranes (GR).
"Input/output signal of system" in this manual explains the overview of electric circuit of the applicable crane.
For the detailed electric circuit, refer to the service manual (Circuit diagrams and Data) for each model.
In undertaking repair, refer to the separate operation manual, parts catalog, and service manual for each model, and then perform appropriate repair and service.
If the parts replacement is required, check the disassembly and order units from the applicable parts catalog.





150 USD

ADD to CART

BACK to CATALOGUE

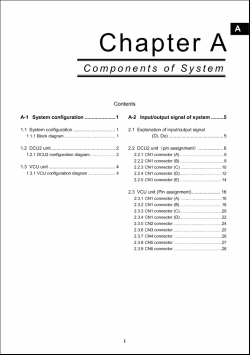

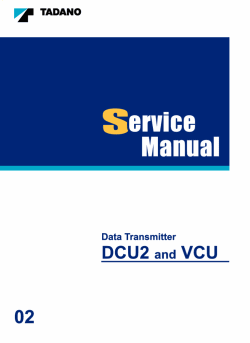

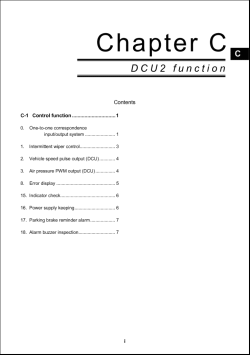

Screenshots
(You can click on the thumbnails for large view)

Click to view big picture in popup. Click to view big picture in popup. Click to view big picture in popup. Click to view big picture in popup.

Conflict Tadano Data Transmitter DCU2 and VCU (GR-130N-1 - GR-700N-1) with other catalogues:

No conflicts found

 Region:   All regions
 Languages:  English, Japanese
 OS:  VISTA, Win7 x32, Win7 x64, Win98, Windows 8/10 x64, WinJapan, WinNT, WinXP
 Quantity of CD:  1 CD
 Data of update:  8/2015
 Price:  150 USD
